Dual display touch screen electronic universal testing machine WDW-100E

Electronic universal testing machine
Dual display and dual control: computer+touch screen dual operation mode, balancing on-site fast inspection and professional analysis needs; High precision and high stability: 0.5 level accuracy, full range without grading, meeting high-end detection requirements; Easy to operate: The touch screen interface is intuitive and easy to understand, the computer software functions are complete, and even beginners can quickly get started; Safe and reliable: with multiple safety protection desig...




1、 Product core positioning

    This device is a new generation high-precision electronic universal testing machine with dual control and dual display of microcomputer and touch screen. It is designed for testing the mechanical properties of metal/non-metal materials such as tension, compression, bending, shearing, and peeling. It is widely used in material mechanics testing scenarios in university laboratories, quality inspection institutions, and industrial and mining enterprises, achieving dual-mode adaptation of "on-site fast inspection+professional analysis".

2、 Core highlight: Dual display and dual control system

    Dual operation mode, flexible adaptation to different scenarios

Touch screen terminal (built-in to the host): Without the need for a computer on site, test parameters can be directly set, tests can be started/paused, real-time force values/displacement/deformation data can be viewed, and test curves can be synchronously displayed. It is suitable for quick inspection in workshops, teaching demonstrations, and other scenarios, with intuitive and efficient operation.

    Computer side (supporting software): Professional software is used to edit experimental plans, compare and analyze multiple sets of data, generate custom reports, store and trace data for a long time, meeting the needs of laboratory standardization testing and in-depth analysis of scientific research data.

The touch screen and computer data are synchronized in real-time in both directions, and complete test data and curves can be viewed at both ends during the test process. Both ends can monitor the test status in real time, effectively avoiding operational blind spots caused by abnormal single end displays, greatly improving test stability and detection reliability.

3、 Hardware configuration and structure

    Adopting a double column portal high-strength frame, it has strong rigidity, high stability, and is not easily deformed during long-term use;

Servo motor drive+precision ball screw transmission, smooth operation, low noise, high control accuracy;

    Standard safety protection system (overload protection, limit protection, emergency stop button), with a safe and controllable testing process;

Fixtures can be customized according to materials, such as metal stretching fixtures, non-metal peeling fixtures, and bending indenters, to accommodate various types of specimens.

4、 Applicable scenarios

    Applicable materials: metallic materials (steel, aluminum, fasteners), non-metallic materials (plastic, rubber, film, textile, composite materials), etc;

Test items: tensile strength, yield strength, elongation at break, modulus of elasticity, compressive strength, flexural strength, peel strength, tear strength, etc;

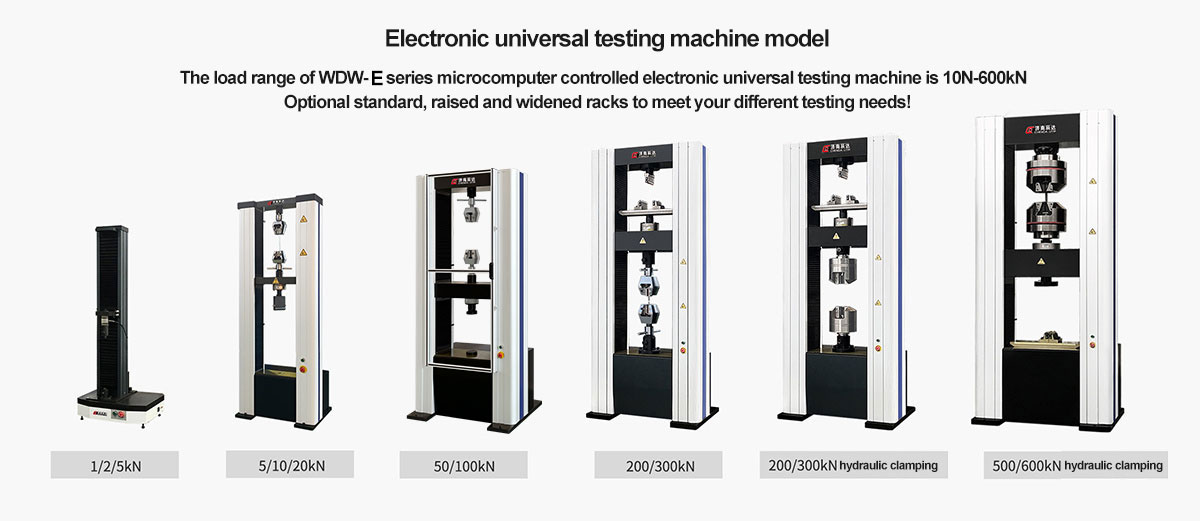

Model   WDW-100EWDW-200(300)EWDW-600E
Max. test force(kN)100200600
Testing force accuracy±0.5%±0.5%±0.5%
Testing force measurement1%~100%FS1%~100%FS1%~100%FS
Resolution of test force0.001%FS0.001%FS0.001%FS
Deformation measurement1%~100%1%~100%1%~100%
Deformation measurement accuracyWithin the measurement range, the relative error of the indication is ±1%
Resolution of displacement(mm)0.0010.0010.001
Displacement measurement accuracy±0.5%±0.5%±0.5%
Speed range(mm/min)0.005~5000.005~5000.005~300
Speed accuracy±1%±1%±1%
Max. tensile test space(mm)600600600
Max. compression test space(mm)8006001000
Width of test space(mm)600600650
Dimension(width×depth×height mm)1010×750×21601110×770×25581200×770×2800
Frame weight(kg)110015603200
Power1.5kW 220V/50Hz±10%3kW  380V/50Hz±10%5kW 380V/50Hz±10%
