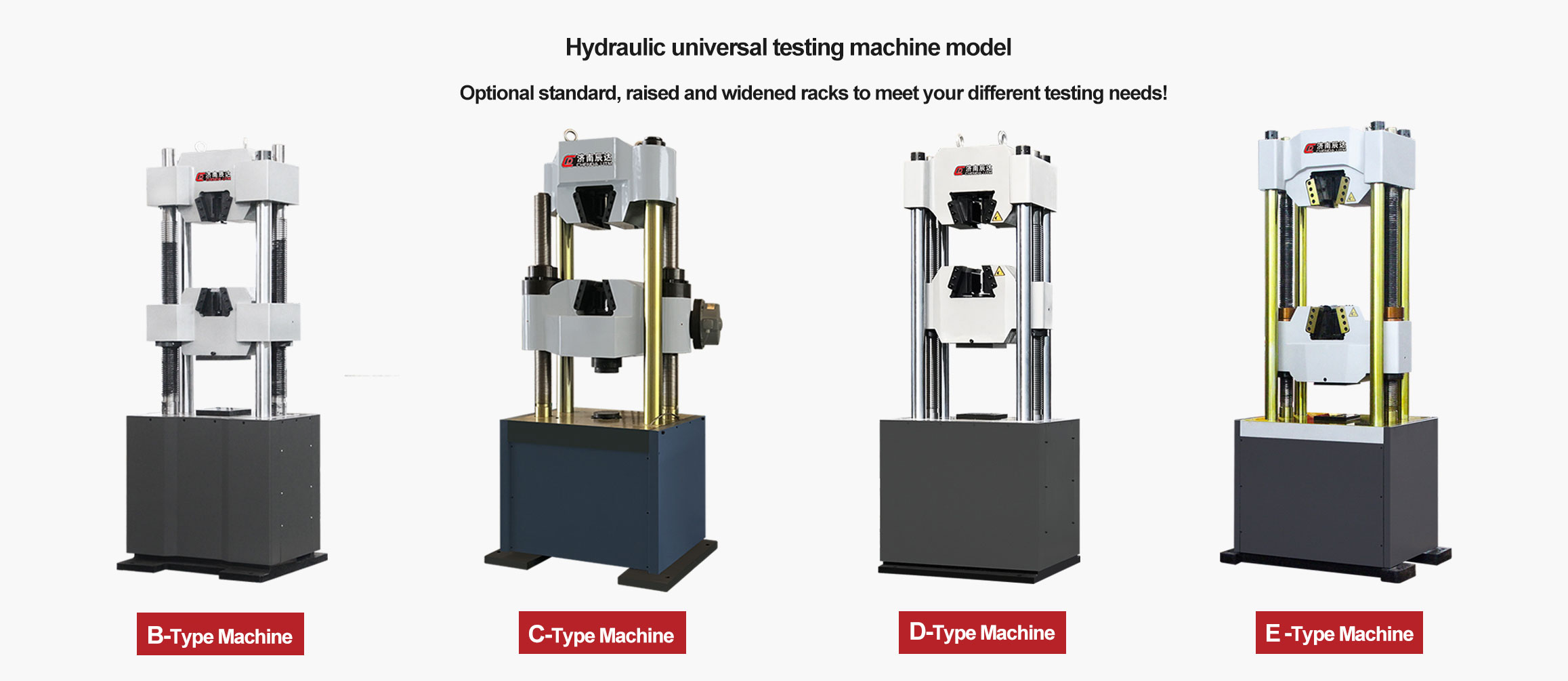

The WEW-D series microcomputer screen display hydraulic universal testing machine consists of a host, an oil source system, a computer measurement and control system, an electrical control system, etc. It can meet the requirements of three closed-loop control of load, deformation, and displacement, and can smoothly switch according to the set program to meet the requirements of different material tests.
This product has a reasonable structure, beautiful and elegant appearance, high rigidity of the host, and minimal impact on the ground during testing. It has software and hardware protection functions and is safe and reliable. The WEW-B microcomputer screen display hydraulic universal testing machine adopts a dual space structure with an oil cylinder placed below, where the tension space between the upper crossbeam and the middle crossbeam is mainly used for tensile testing of the specimen; The space between the workbench and the middle crossbeam is a compression space, which can be used for compression, bending, shearing and other tests of the sample. The tension space and compression space can be automatically adjusted by rotating the screw and driving the middle crossbeam to move up and down.
This testing machine is mainly used for tensile, compression, bending, shear and other tests of metal materials. Equipped with corresponding fixtures, it can be used for tensile, compression, bending, shear, bending and other tests of other types of specimens.
A closed-loop servo control system composed of a controller, oil pressure sensor, displacement sensor, extensometer, and computer can automatically and accurately control the testing process, and automatically measure testing parameters such as force, displacement, and deformation.
The testing machine can achieve tests such as equal rate test force, constant rate deformation, and constant rate displacement, and can achieve three-stage control of force, deformation, and displacement in one test, with smooth transitions between each control.
The experimental parameters can be automatically controlled and the experimental results can be obtained through computer collection and software processing. Real time display of test curves and results on computer screens, and printing of test reports and curves.
| 规格型号 | WEW-600D | WEW-1000D |
| 最大试验力（kN） | 600 | 1000 |
| 试验力示值相对误差 | ≤示值的±1（0.5）% | ≤示值的±1（0.5）% |
| 试验力测量范围 | 最大试验力的2%～100% | 最大试验力的2%～100% |
| 等速应力控制范围 | 2～60MPa/s | 2～60MPa/s |
| 等速应变控制范围 | 0.00025/s～0.0025/s | 0.00025/s～0.0025/s |
| 等速位移控制范围（mm/min） | 0.5～50 | 0.5～50 |
| 夹紧方式 | 液压夹紧 | 液压夹紧 |
| 圆试样夹持直径范围（mm） | Φ6～Φ40 | Φ13～Φ60 |
| 扁试样夹持厚度范围（mm） | 0～30 | 0～40 |
| 扁试样夹持宽度（mm） | 80 | 110 |
| 最大拉伸试验空间（mm） | 550 | 550 |
| 最大压缩试验空间（mm） | 500 | 550 |
| 油源外形尺寸（长×宽×高mm） | 1128×700×930 | 1128×700×930 |
| 主机外形尺寸（mm） | 730×590×2100 | 1000×660×2400 |
| 电机功率（kW） | 2.1 | 2.5 |
| 主机质量（kg） | 1600 | 3000 |
| 最大活塞行程（mm） | 200 | 200 |
| 活塞最大移动速度（mm/min） | 约80 | 约80 |
| 试验空间调整速度（mm/min） | 约150 | 约150 |
