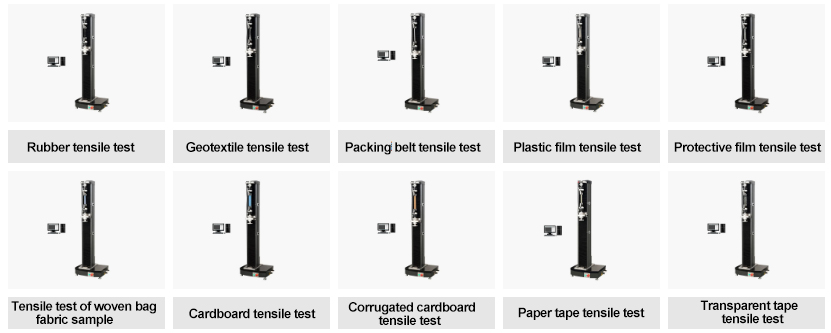

The WDW-E series pneumatic fixture single arm electronic universal testing machine adopts a single column structure, combined with a pneumatic quick fixture system, and is widely used in industries such as packaging, light industry, textile, plastic, adhesive, etc. The equipment can conduct multiple mechanical tests such as stretching, peeling, tearing, and bursting on various materials such as films, tapes, paper, non-woven fabrics, geotextiles, woven bags, rubber, and packing tapes. It is suitable for enterprise quality control, material research and development, and compliance testing.
Core features:
Pneumatic clamping system: Equipped with pneumatic fixtures as standard, the clamping force is uniform and controllable, which can effectively avoid sample slippage and clamping injuries, ensure the stability and repeatability of test data, support rapid clamping, and improve the efficiency of testing work.
High precision measurement and control system: equipped with high-precision force sensors and servo control system, force error ≤ ± 0.5%, displacement resolution 0.001mm, in compliance with multiple domestic and international testing standards such as GB/T, ISO, ASTM, etc.
Multiple testing modes: Supports testing projects such as tensile, 180 °/90 ° peel, tear, burst, elongation at break, tensile strength, etc. The functions are easy to switch and can meet the testing needs of different materials.
Professional data processing: Equipped with dedicated measurement and control software, real-time collection of force values, displacement, time and other test data, automatic generation of test curves and detection reports, supporting data export, printing and historical data tracing.
Compact single column structure: The single arm structure has a small footprint, a wide operating field of view, and is convenient for sample clamping and experimental observation. It is suitable for various use scenarios such as laboratories and production workshops.
Safety protection design: equipped with overload protection, limit protection, emergency stop button and other protective devices, which can effectively ensure the stable operation of equipment and the safety of operators.
Supporting fixture selection and sample testing as needed, customized solutions can be provided based on material characteristics and testing requirements to meet the differentiated testing needs of various industries.
| 规格型号 | WDW-1/2/5E |
| 最大负荷（kN） | 2001-2-5 |
| 试验机准确度等级 | 0.5级 |
| 试验力示值相对误差 | ±0.5％以内 |
| 试验力测量范围 | 1％－100％FS |
| 变形示值相对误差 | ±0.5％以内 |
| 力控制速率范围 | 0.005-0.5FS/s |
| 力控制速率精度 | 速率＜0.05%FS/s时，为设定值的±1%以内， |
| 速率≥0.05%FS/s时，为设定值的±0.5%以内； |
| 应变控制速率范围 | 0.005-0.5FS/s |
| 应变控制速率精度 | 速率＜0.05%FS/s时，为设定值的±1%以内， |
| 速率≥0.05%FS/s时，为设定值的±0.5%以内； |
| 位移控制速率精度 | 设定值的±0.5%以内 |
| 横梁移动行程(mm) | 800(可定制） |
| 横梁移动速度(mm/min) | 0.001～500 |
| 最大拉伸空间（mm） | 800（可定制） |
| 最大压缩空间（mm） | 1000（可定制） |
| 主机外形尺寸（长×宽×高，mm） | 522×455×1425 |
| 总功率（kW） | 0.75 |
| 重量（kg） | 150 |
| 电源电压 | 220V/50Hz±10% |
